Automatic Food Processing Machine
Created with Pixso. Jaggery making machine cube sugar press wrapping production line machine automatic cane sugar cube making mac

Jaggery making machine cube sugar press wrapping production line machine automatic cane sugar cube making mac

Brand Name: AiHe
Model Number: A(1)
MOQ: 1 set
Price: Negotiable
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Name:
Sugar Cube Making Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Core Components:
PLC, Bearing, Gearbox, Motor
Usage:
Sugar
Type:
Production Line
Voltage:
380V/50HZ
Application:
Sugar Cube Line Sugar Cube Making Machine
Production Capacity:
100-150kg/h
Sugar Size:
20*22*22mm
Name Of Equipment:
Commercial Sugar Cube Production Line
Supply Ability:
200 Sets Week
Highlight:

automatic baby food making machine

,

plc baby food making machine

,

plc automatic food processing machine

Product Description

Jaggery making machine cube sugar press wrapping production line machine automatic cane sugar cube making mac



Product description

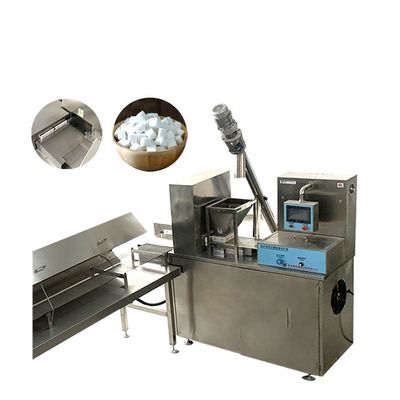

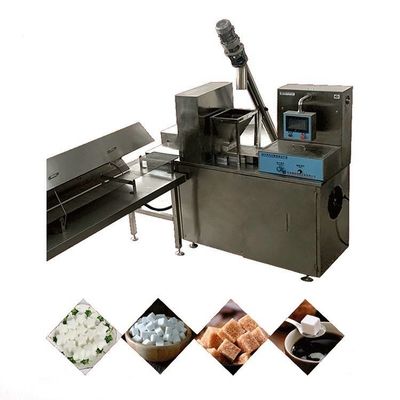

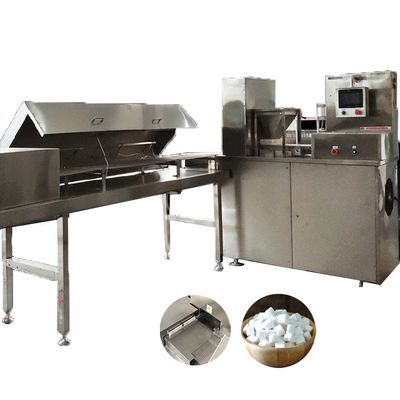

1. The coffee sugar cube production line adopts PLC control, is equipped with a touch screen, uses a mixing and feeding machine to automatically feed sugar, uses a hydraulic grinding tool to continuously and automatically press the shape, and performs flow operations through a flat-plate linkage and a drying oven.

2. This equipment is mainly used for powders or granules dissolved in water, such as sugar, chicken essence, sugar substitutes and other materials with better fluidity. It is an excellent equipment for pressing cube-shaped and other various shapes of materials.



The production line can also be equipped with automatic block sorting machines, automatic packaging machines, coding machines and other automatic equipment to provide customers with a complete set of sugar cube production solutions.

NO.1 Sugar crusher
Production capacity 70-150kg/h
Sugar size <5mm
Crushing fineness 20-80mesh
Power 5.5kw
Dimensions 780*550*1200mm
Weight 80kg
NO.2 Mixed spiral feeding machine
Function Mixing, automatic feeding
Capacity 1-3m³/h
Hight of Height 1700mm
Power 1.5kw
Dimensions 1100*800*17100mm
Weight 140kg



NO.3 Sugar cube forming machine(main machine)
Capacity 100-150kg/h
Control System PLC+Touch screen
Voltage 380V/50HZ
Power 3kw
Dimensions 1700*700*1600mm
Weight 850kg
Sugar cube size 20*22*22mm
NO.4 Flat joint conveyor
Features Linkage, convey
Capacity 1-10m³/min
Air pressure 0.3-0.5mpa
Dimensions 1300*700*1000mm
Weight 60kg



NO.5 Tunnel oven
Speed 1-10m/min
Voltage 380V/50HZ
Power 2kw*6
Dimensions 1990*700*1150mm
Weight 90kg
NO.6 Cooler machine
Capacity 1-10m/min
Function Cooling
Power 0.6kw
Dimensions 1990*700*700mm
Weight 60kg



NO.7 Semi-automatic vacuum packing machine
Maximum degree of vacuum 26(31)Kpa
Maximum pressure 36(43) Kpa
Voltage 220V/380V/60HZ
Power 2.2kw
Dimensions 650*600*950mm
Weight 75kg
Table size custom



Jaggery making machine cube sugar press wrapping production line machine automatic cane sugar cube making mac 0Jaggery making machine cube sugar press wrapping production line machine automatic cane sugar cube making mac 1Jaggery making machine cube sugar press wrapping production line machine automatic cane sugar cube making mac 2



Company information



Luohe Aihe Mechanical and Electrical Equipment Co., Ltd. is located in China's food city Luohe city with prosperous economy and developed transportation. It is a professional manufacturer engaged in the research and development and sales of all kinds of food machinery, with skilled professional and technical personnel and advanced production and processing equipment. The company has been committed to the development of food machinery and new technology of food machinery, leading products are: daily processing 6-1000 tons of series of grain deep processing machinery, food machinery, series of food cleaning equipment, series of food cleaning conveying equipment, series of quantitative packaging scale equipment, series of environmental protection dust removal equipment and other mechanical products. Products are sold all over the country and get the majority of users' praise and love.



FAQ:



Q1: Are you a trade company or a manufacturer?
A1: we are a manufacturer, welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss beforecontract.
Q3: Could you supply all the parameters about the machines?
A3: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4: What is your terms of payment ?
A4: 30% T/T in advance , 70% balance before shipment after inspection.
Q5: How about the after-service?
A5: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q6:do you supply any formula to buyer?
A6: yes, we supply formulas to buyer.
Q7: How about the machine warranty?
A7: We provide 1 year warranty, Lifetime service
