Brand Name: | AiHe |
Model Number: | A(1) |
MOQ: | 1 set |
Price: | Negotiable |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Hard boiled candy making machine hard candy production line with low price
Product description
Model | AH-H150 | AH-H300 | AH-H450AH | -H600 |
Standard production volume | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Candy weight | 2-6g | 2-6g | 2-6g | 2-6g |
Pouring rate | 45-55n/min | 45-55n/min | 45-55n/min | 45-55n/min |
Steam demand |
0.2m³/min 0.4-0.6Mpa
|
0.2m³/min 0.4-0.6Mpa |
0.2m³/min 0.4-0.6Mpa |
0.2m³/min 0.4-0.6Mpa |
Working environment requirements
|
Temperature: 20-25℃ Humidity: 55%
|
Temperature: 20-25℃ Humidity: 55% |
Temperature: 20-25℃ Humidity: 55% |
Temperature: 20-25℃ Humidity: 55% |
Total power | 18kw/380V | 27kw/380V | 34kw/380V | 38kw/380V |
Overall length | 15m | 17m | 17m | 20m |
Overall weight | 3500kg | 4000kg | 4500kg | 5000kg |

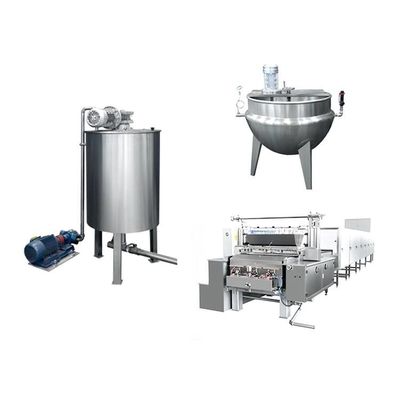

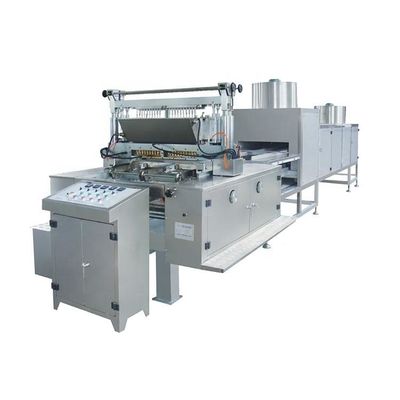

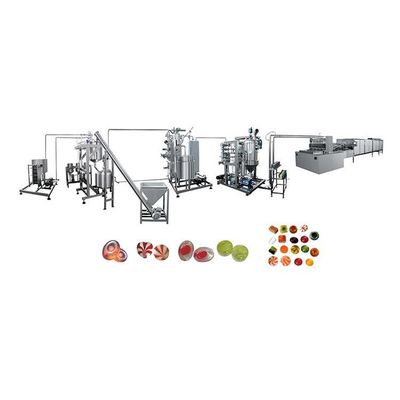

1. The hard candy production line is composed of an electric sugar cooker, a cooling table, a batching roller, a rope screen, a forming machine, a cooling screen, a packaging machine, etc. It can produce round, oval hard candies and columnar candies.
2. The entire production line has integrated electrical control and convenient operation and control. It is an ideal equipment for small and medium-sized candy companies.
Features

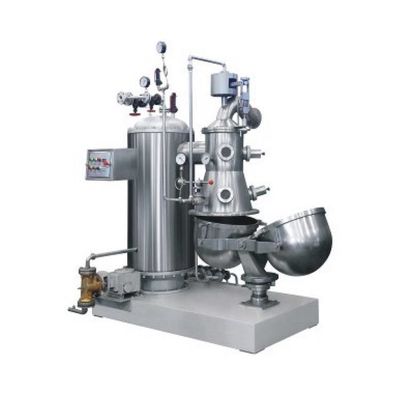

1. Using famous-brand PLC, the performance is more stable, and the programming automatically controls the vacuum boiling temperature, time, holding temperature and pouring speed.
2. The 10.7-inch large touch screen displays the process flow chart, the working status of each part, the setting and display of parameters such as temperature, pouring speed, etc., making it easier for users to operate and master.
3. Frequency conversion speed control controls the accurate flow of sugar liquid, and the quality of massecuite is stable.
4. The dynamic mixer completes the quantitative filling and mixing of flavors, pigments, and acids online.
5. Conveyor belt, cooling system and double demoulding mechanism ensure demoulding.
6. Various shapes of candies can be produced according to different molds.
7. Replace part of the cooking and equipment and molds. This production line can produce soft candy series.
Company information
Luohe Aihe Mechanical and Electrical Equipment Co., Ltd. is located in China's food city Luohe city with prosperous economy and developed transportation. It is a professional manufacturer engaged in the research and development and sales of all kinds of food machinery, with skilled professional and technical personnel and advanced production and processing equipment. The company has been committed to the development of food machinery and new technology of food machinery, leading products are: daily processing 6-1000 tons of series of grain deep processing machinery, food machinery, series of food cleaning equipment, series of food cleaning conveying equipment, series of quantitative packaging scale equipment, series of environmental protection dust removal equipment and other mechanical products. Products are sold all over the country and get the majority of users' praise and love.
FAQ:
Q1: Are you a trade company or a manufacturer?
A1: we are a manufacturer, welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss beforecontract.
Q3: Could you supply all the parameters about the machines?
A3: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4: What is your terms of payment ?
A4: 30% T/T in advance , 70% balance before shipment after inspection.
Q5: How about the after-service?
A5: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q6:do you supply any formula to buyer?
A6: yes, we supply formulas to buyer.
Q7: How about the machine warranty?
A7: We provide 1 year warranty, Lifetime service
