Fruit Vegetable Processing Machine
Created with Pixso. Professional Custom Industrial Cold Press Juicer Apple Juice Belt Type Press

Professional Custom Industrial Cold Press Juicer Apple Juice Belt Type Press

Brand Name: AiHe
Model Number: F(1)
MOQ: 1 set
Price: Negotiable
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Voltage:
380V
Power:
2.2KW
Weight:
2500 KG
Dimension(L*W*H)::
3100*1500*1800mm
Capacity:
1-20T/H
Type:
Belt Juicer Machine For Fruit
Supply Ability:
200 Sets Week
Highlight:

professional fruit washing machine

,

professional fruit vegetable processing machine

,

industrial fruit washing machine

Product Description

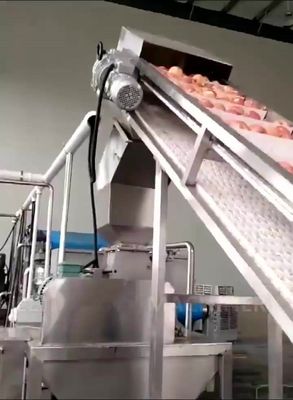

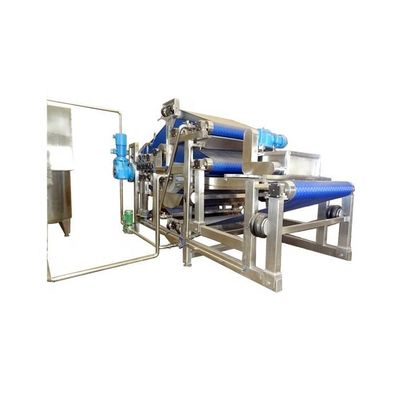

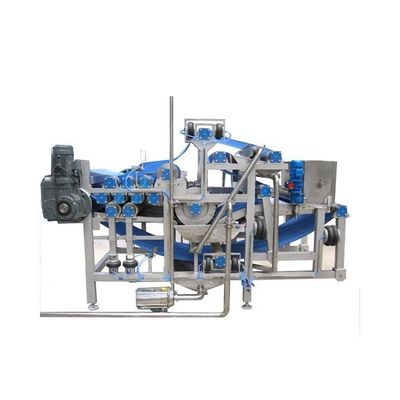

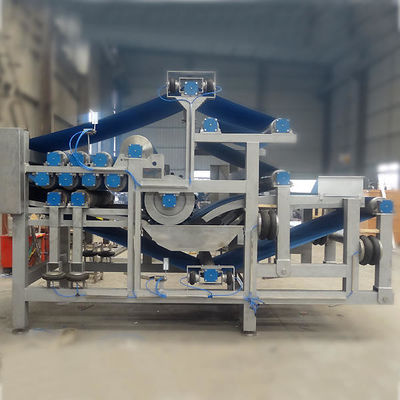

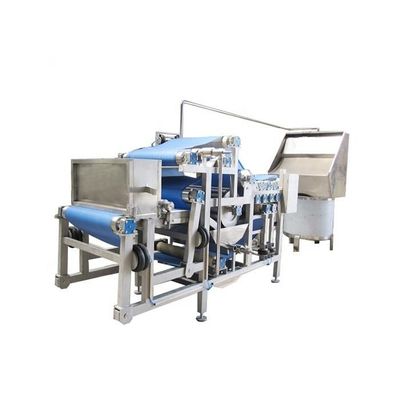

Professional Custom Industrial Cold Press Juicer Apple Juice Belt Type Press



Product description

It also has energy-saving, high degree of automation, automatic access to materials, continuous work, versatility, full pressure. filtration, the filter cake moisture content is low, easy operation and maintenance, etc., is a higher juice squeezed juice equipment.
Use of such a juicing equipment management can make juice out of the juice rate by 20-35%, juice rate is as high as 70-80%(depending on the raw material), can greatly reduce the production cost, improve the economic efficiency of enterprises
This equipment can also be used in food, chemical industry, environmental protection, light industry and so on some of the powder and paste objects of pressure filtration dehydration.

Model 03 05 10 DYJ-20
capacity (t/h) 1-3 3-5 5-10 10-20
Linear speed of filter belt(m/min) 5 5.7 7.95 6.3
Main transmion speed(r/min) 11 9.5 11 8.2
Central unit power(kw) 1.5 3 4 5.5
Cleaning pump power(kw) 7.5 11 15 30
Cleaning pump flow(m³/h) 10 14 16 32
Cleaning pump lift(m) 32 94 189 378
Reflowing pump power(kw) 2.2 5.5 5.5 5.5
Reflowing pump flow(m³/h) 12.5 25 25 25
Reflowing pump lift(m) 20 32 32 32
Material roller power(kw)   0.37 0.37 0.37
Consumption of compressed air (m³/h) 1
Pressure of compressed air (MPa) 0.6
Height of material inlet(mm) 1160 1840 2045 1920
Size of juicing belt( mm) 7780×800 11170×1200 14300×1750 16800×2500
Dimension(mm) 3100×1475×1820 3940×2085×2430 5000×2780×2560 5420×3430×



Professional Custom Industrial Cold Press Juicer Apple Juice Belt Type Press 0Professional Custom Industrial Cold Press Juicer Apple Juice Belt Type Press 1



Company information



Luohe Aihe Mechanical and Electrical Equipment Co., Ltd. is located in China's food city Luohe city with prosperous economy and developed transportation. It is a professional manufacturer engaged in the research and development and sales of all kinds of food machinery, with skilled professional and technical personnel and advanced production and processing equipment. The company has been committed to the development of food machinery and new technology of food machinery, leading products are: daily processing 6-1000 tons of series of grain deep processing machinery, food machinery, series of food cleaning equipment, series of food cleaning conveying equipment, series of quantitative packaging scale equipment, series of environmental protection dust removal equipment and other mechanical products. Products are sold all over the country and get the majority of users' praise and love.



FAQ:



Q1: Are you a trade company or a manufacturer?
A1: we are a manufacturer, welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss beforecontract.
Q3: Could you supply all the parameters about the machines?
A3: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4: What is your terms of payment ?
A4: 30% T/T in advance , 70% balance before shipment after inspection.
Q5: How about the after-service?
A5: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q6:do you supply any formula to buyer?
A6: yes, we supply formulas to buyer.
Q7: How about the machine warranty?
A7: We provide 1 year warranty, Lifetime service
